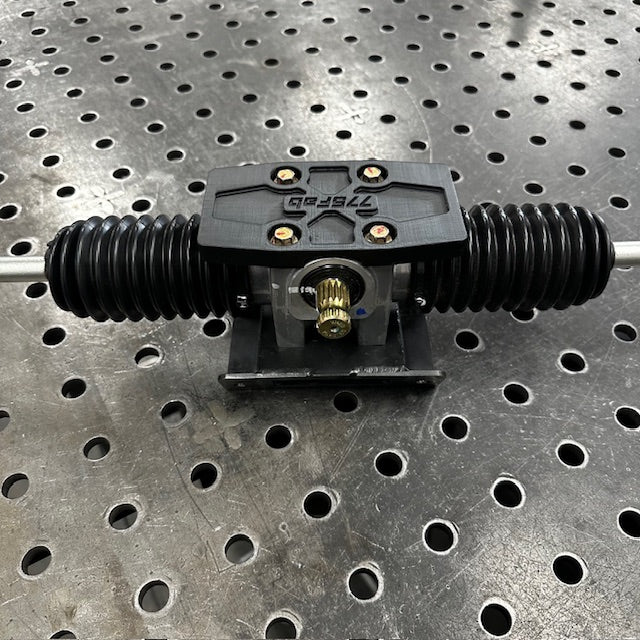

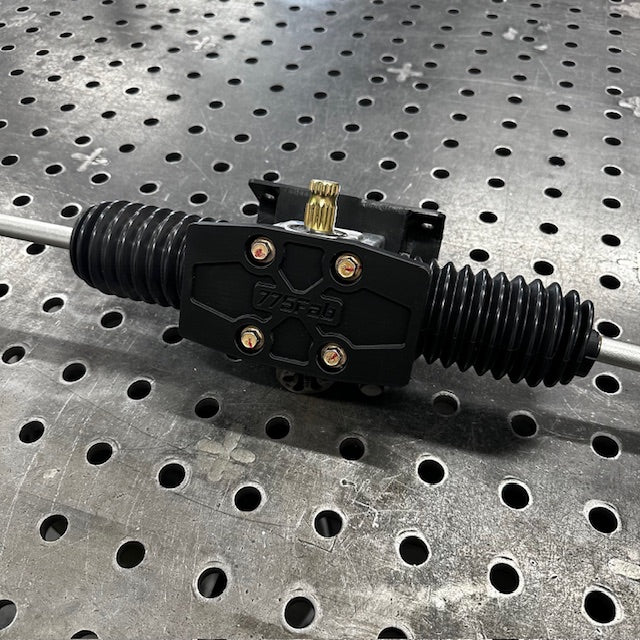

HD OEM Rack Double Shear Kit

775Fab Wildcat XX HD OEM Rack Billet Double Shear Kit

Take your Wildcat XX steering system to the next level with the 775Fab Billet Double Shear Kit, engineered specifically for the HD Arctic Cat 1505-035 steering rack. Precision CNC-machined from 6061-T6 billet aluminum and paired with 4130 chromoly mounting tabs, this kit dramatically increases steering rack support, reduces mounting stress, and improves overall steering reliability in the harshest off-road conditions.

By converting the rack to a double shear mounting design, load forces are distributed more evenly across the steering rack and mounting hardware. The result is reduced flex, improved steering precision, and significantly greater resistance to impact loads from racing, rock crawling, and oversized tires.

Whether you're building a race-ready Wildcat XX or simply want the strongest steering setup available, this kit is the perfect complement to your Arctic Cat 1505-035 steering rack.

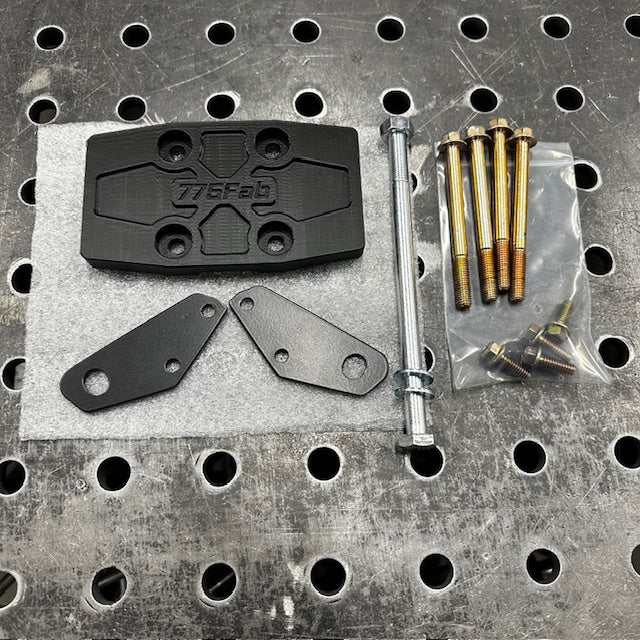

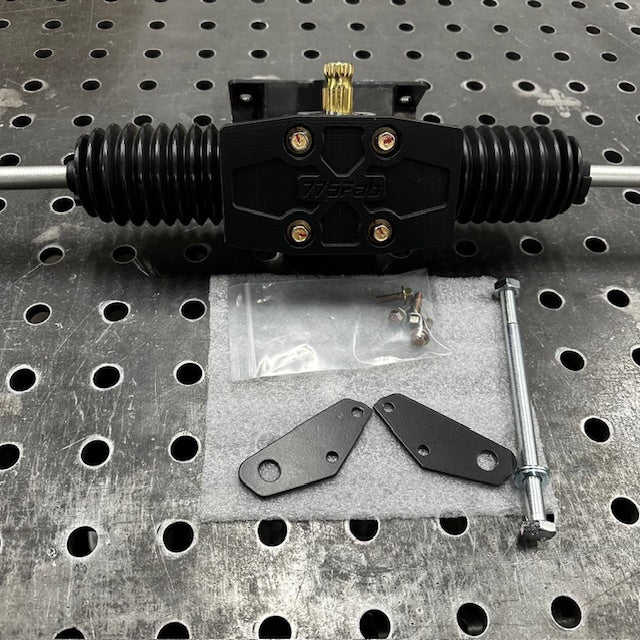

Kit Includes:

• CNC-machined 6061-T6 billet aluminum double shear brackets (raw aluminum or with black anodizing)
• Powder-coated 4130 chromoly mounting tabs
• (4) New steering rack mounting bolts
• (4) Lock nuts
• Hardened washers
• (1) New lower differential/mounting tab bolt
• (4) Grade 8 flange-head mounting bolts for side tabs


Features & Benefits:

• Designed specifically for the Arctic Cat 1505-035
• Compatible with the 775Fab 4130 HD Chromoly Rack Mount or the OEM rack mounting bracket

• Fits with both the 2018-23 Team front differential and 24+ Artic Cat HD front differential
• Provides additional steering rack support

• Reduces stress on the rack mounting bracket and mounting hardware
• Minimizes bolt bending and flex under heavy loads
• Increases resistance to impact damage during aggressive driving
• Better handles the increased forces from larger tires
• Reduces steering deflection for improved steering compliance
• Delivers a more precise and consistent steering feel
• Promotes more even loading across the steering rack housing

Ideal For:

• High-horsepower Wildcat XX builds
• Desert racing
• Rock crawling and technical trails
• Aggressive trail riding
• Vehicles running oversized tires

For the ultimate steering upgrade, pair this kit with the 775Fab 4130 HD Chromoly Rack Mount, 1505-035 Rack Reducer Bushings

Notes: 775Fab 4130 HD Chromoly Rack Mount and the Arctic Cat 1505-035 steering rack, and reducer bushings are sold separately.

-If you buy the 1505-035 rack from 775Fab it will have the reducer bushings installed already

-If you already own the 1505-035 rack you can purchase the reducer bushings separately

*PRESALE* Estimated Ship date by 10/25/26 OR Before (subject to change)

Images are temporary place holders, Items, descriptions, materials are subject to change
